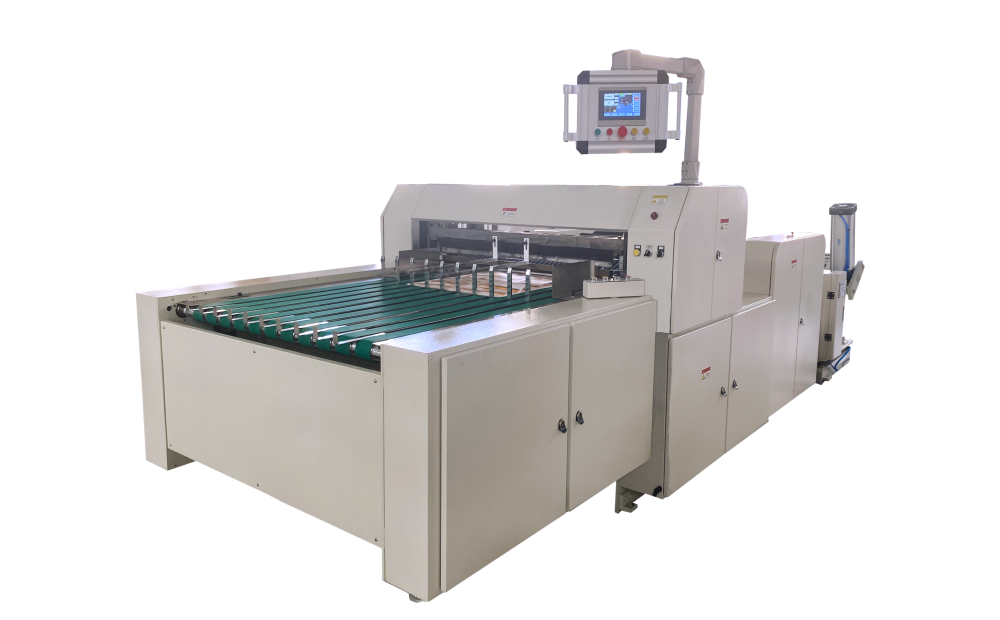

High Precision Thin Paper Sheet Cross Cutting Machine

High Precision Thin Paper Sheet Cross Cutting Machine

Applies to:
This machine is suitable for many paper, film, paper and film lamination and other best large-scale roll cutting machines. This is the best quality cutting machine in China.
characteristic:
1. Host frequency conversion speed regulation, PLC touch screen control system, automatic counter quantity, automatic length setting, automatic shutdown when alarming, automatic tension control and other functions.

Please leave us a message or send an email for a specific price.
E-mail: gawangmachine@gawangmachine.com
WhatsApp:+8613388518910
ContactGet a Quote

Applies to:

This machine is suitable for many paper, film, paper and film lamination and other best large-scale roll cutting machines. This is the best quality cutting machine in China.

characteristic:

1. Host frequency conversion speed regulation, PLC touch screen control system, automatic counter quantity, automatic length setting, automatic shutdown when alarming, automatic tension control and other functions.

2. The paper feed roller adopts automatic loading system (150# air cylinder), and the air shaft adopts 3# (76mm paper core)

3. The transmission system adopts pneumatic, photoelectric sensor and other centralized control, which is easy to operate, high cutting precision, low mechanical stability and low noise.

4. Motor frequency conversion speed regulation, automatic counting, alarm stop, magnetic powder tension control. It can be cut in multiple sections in the longitudinal direction, and the waste edge is automatically eliminated by the fan.

5. The fixed position of the traction drive adopts a servo motor system, and the traction drive roller adopts a steel structure. The feed traction method is to drag the rubber roller through the motor to move the sprocket. The receiving platform is an ordinary table.

6. Multiple rolls can be cut horizontally and vertically.

Main Technical Parameters:

Model

GW-HQ-1100A

GW-HQ-1400A

Max.Diameter of Unwinding

?1400mm

?1400mm

Max.Cutting Width

1100mm

1400mm

Cutting Length

20-1000mm

20-1000mm

Precision

±0.2mm

±0.2mm

Machine Speed

10-120 cut per minute

10-120 cut per minute

Cutting Speed

150-170 cut per minute

150-170 cut per minute

Total Power

8KW

10KW

Machine Weight

1700KG

2100KG

Overall Dimension(LxWxH)

5400*1900*1400mm

5400*2200*1400mm

Illustrate in detail:

This machine adopts servo motor PLC to control fixed length cutting.

The transmission adopts pneumatic synchronous belt and synchronous control of brake motor.

It can be longitudinally divided into multiple sections, and the waste edges are automatically removed by a fan.

Motor frequency conversion speed regulation, automatic counting, alarm stop, automatic control of magnetic powder tension.
