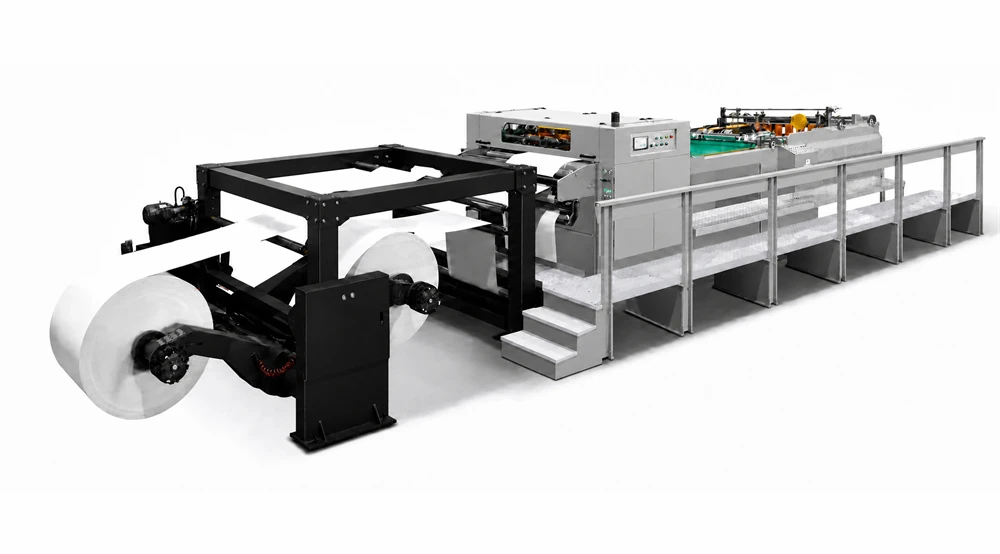

MZ 140 Single Rotary Paper Sheeting Machine

The servo driven precision shearing machine adopts advanced British technology and servo system for control. With rich experience and leading advanced engineering manufacturing technology, it is a new generation of high-precision and high-efficiency machine widely used in paper mills, printing and packaging industries, for cutting cardboard, copperplate paper, kraft paper, photo paper, aluminum foil paper, packaging paper, etc.

Specifications of the Single-Knife Rotary Paper Cutter

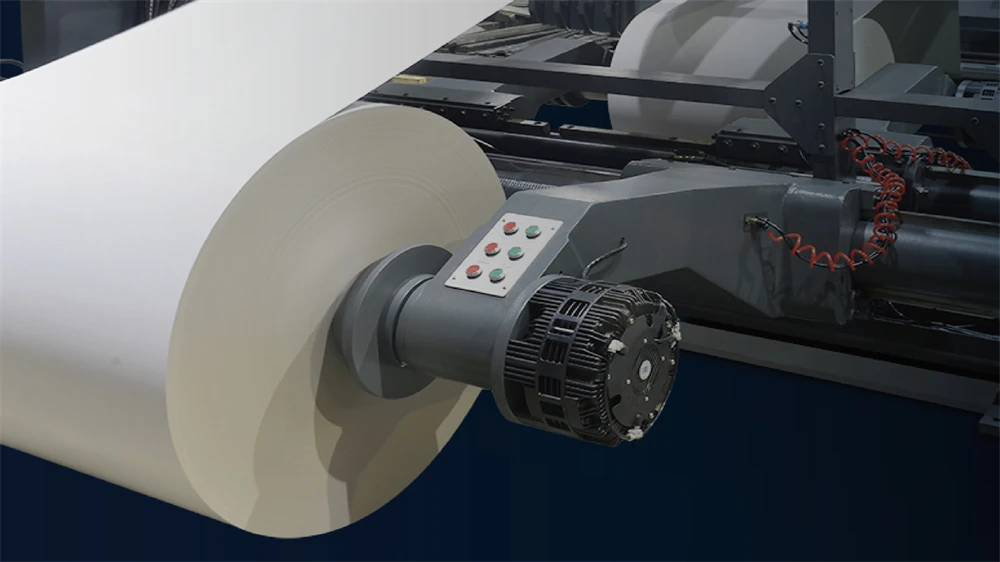

Adopting a multi-point tension control system, it automatically measures the electric eye through infrared distance feedback to the PLC control system. The tension of the braking load increases

Alternatively, it can be reduced through a proportional valve, which can automatically control the tension of the paper and can be fine tuned through the human-machine interface.

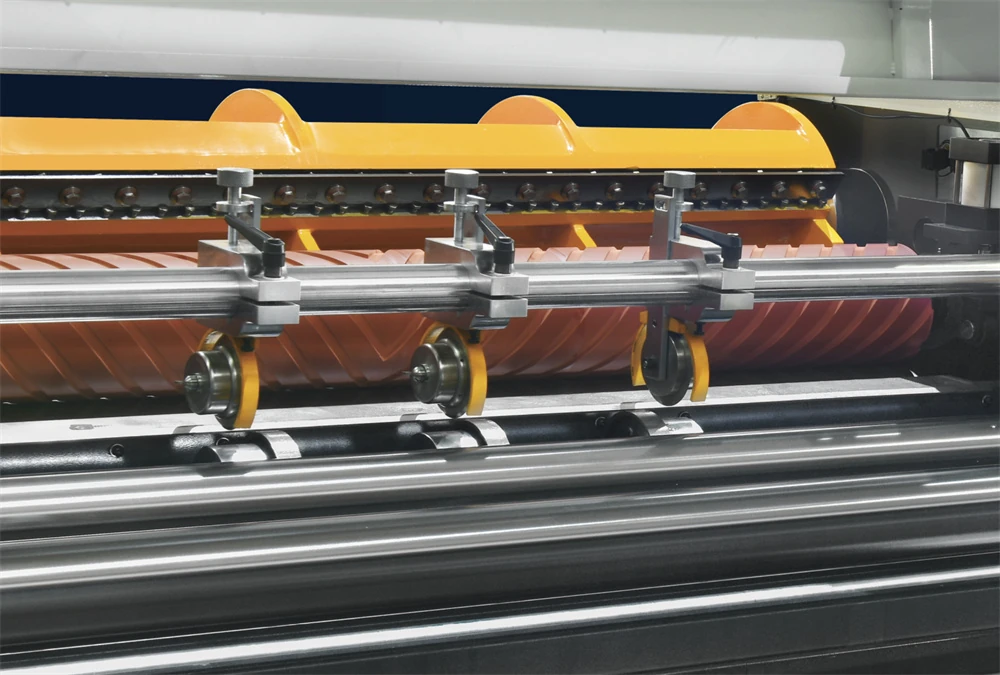

The cutting and slitting blade group has the function of relying on cutting tools, which can accurately adjust the overlap depth of the upper and lower blades, adjust the blade angle according to different feed directions, and fix the blade group without the need for tools. This cutting method has the characteristics of less powder, smooth cutting surface, and fast cutting speed. The high rigidity tool holder is suitable for high-speed cutting environments at 300m/min, improving production efficiency and ensuring the stability of material quality.

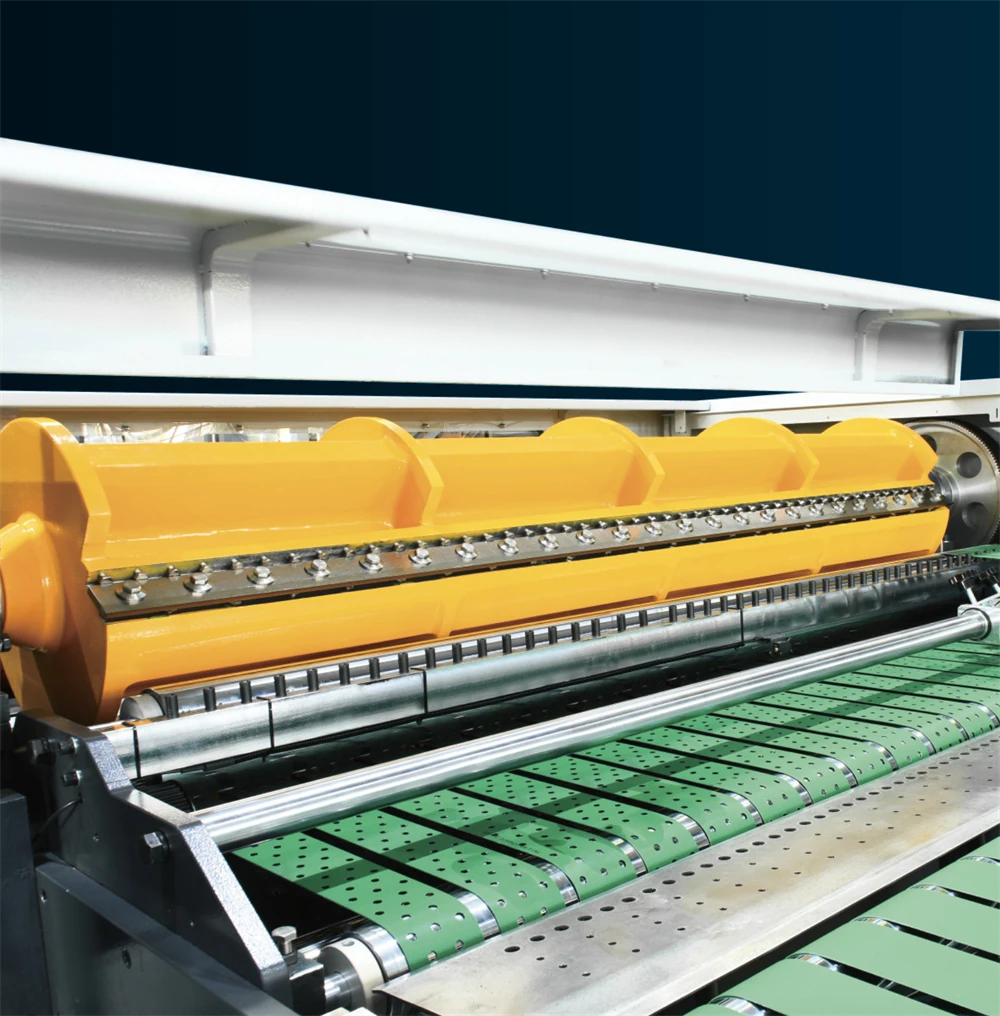

1. Upper blade roller: Adopting the British blade method, it effectively reduces the load and noise during paper cutting, and extends the tool life. The upper blade roller body is welded with stainless steel, precision machined, and dynamically balanced, effectively reducing high-speed operation. Time vibration and noise.
2. Lower blade holder: The lower blade holder is made of cast iron that is integrally formed and cast, and then precision machined to have good stability.
3. Active roller: The roller surface is designed with expansion lines, and the cylinder is used to control the pressure and paper clamping of the roller body.
4. Back cutting blade: Made of special alloy steel precision machining, it has a long service life and the blade is easy to adjust.
5. Safety cover: When the safety cover is opened, it will automatically close to ensure safety.
