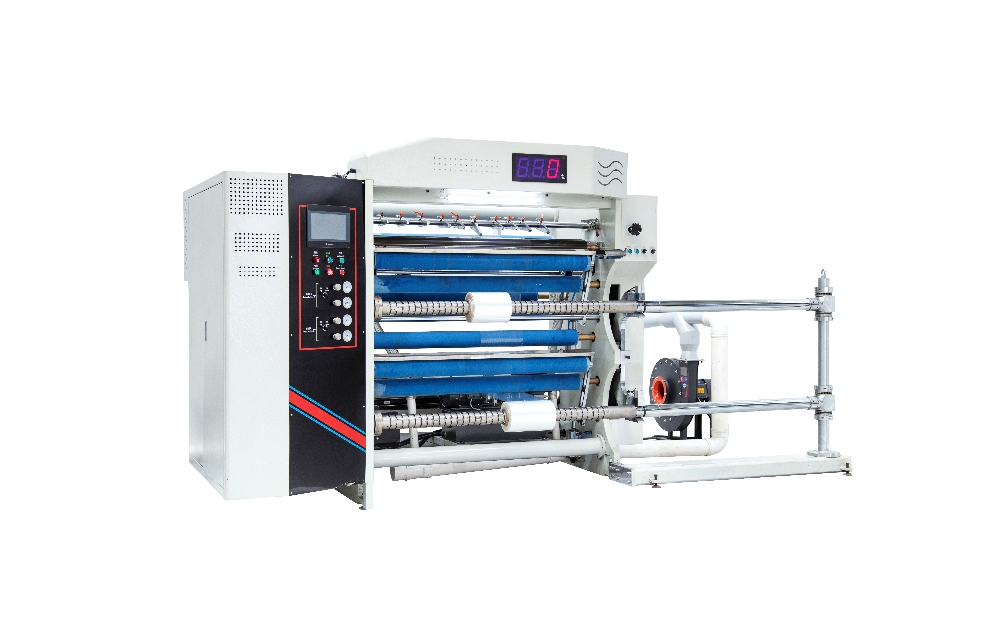

This machine is specially designed for the cutting of BOPP, LDPE, PE, PP, PET, PVC and other plastic films. It is an ideal equipment for printing and packaging companies.
This machine is specially designed for the cutting of BOPP, LDPE, PE, PP, PET, PVC and other plastic films. It is an ideal equipment for printing and packaging companies.
Features：1. Frequency conversion speed regulation of the host, PLC touch screen control system, keep running smoothly during acceleration;
2. Automatic counter, alarm automatic shutdown, automatic tension control and other functions;
3. The unwinding unit adopts automatic air supply system (150# cylinder);
4. The rewinding adopts vector motor to control the tension, and the rewinding adopts magnetic powder brake to control the tension;
5. Equipped with loading and unloading tower, unloading is simple and convenient.
|
Model Type |
GW-FQ-1100B |
GW-FQ-1400B |
GW-FQ-1600B |
|
Max. Parent Web Width |
1100mm |
1400mm |
1600mm |
|
Max. Parent Web Dia.: |
700mm |
700mm |
700mm |
|
Max. Rewinding Dia.: |
600mm |
600mm |
600mm |
|
Max. Machine Speed: |
450m/min |
450m/min |
450m/min |
|
Max.Slitting Speed: |
400m/min |
400m/min |
400m/min |
|
Weight: |
5000kg |
5000kg |
5000kg |
|
Voltage: |
3 Phase 380V 50HZ |
3 Phase 380V 50HZ |
3 Phase 380V 50HZ |
|
Rewinding Shaft in Diameter |
3’’ Pneumatic differential friction Shaft |
3’’ Pneumatic differential friction Shaft |
3’’ Pneumatic differential friction Shaft |
This machine is specially designed for the cutting of BOPP, LDPE, PE, PP, PET, PVC and other plastic films. It is an ideal equipment for printing and packaging companies.
This machine is suitable for slitting and rewinding of various roll materials such as BOPP, PET, CPP, CPE, PVC, aluminum foil, paper, etc. It can be trimmed, slitted, rewinded and cut according to different needs.
